MSVS: Multi-Shell Viewpoint Sampling for Comprehensive Evaluation of 3D Watermarking

Tomoya Matsubara¹, Lingfeng Yao², Chenpei Huang², Miao Pan², Hideo Saito¹

¹Keio University, ²University of Houston

Coming Soon

Multi-Shell Viewpoint Sampling (MSVS), which uses concentric spherical shells with visibility-bounded radii and stratified spherical sampling to ensure uniform, distance-aware coverage of viewpoints for evaluating 3D watermarking on 3D assets.

Abstract

Reliable copyright protection for 3D assets requires watermark verification across arbitrary viewpoints. However, existing evaluations rely on dataset splits or ad-hoc camera samplings that overlook failure cases.

We introduce Multi-Shell Viewpoint Sampling (MSVS), which ensures uniform, distance-aware coverage via concentric, visibility-bounded shells and spherical sampling. MSVS exposes significantly low bit accuracy even on high-quality renderings that an adversary would prefer.

Based on this evaluation standard, we further propose a greedy subsampling strategy that selects training views guided by a locality-aware kernel. For 3D-GSW, greedy subsampling improves MSVS bit accuracy by $+0.020$ on the Blender dataset and $+0.056$ on the Stanford-ORB dataset over random selection, and the gains persist under common image attacks.

MSVS establishes a comprehensive benchmark for 3D watermark evaluation, while greedy subsampling provides an efficient strategy to enhance watermark protection.

Camera viewpoints used for evaluation in existing methods

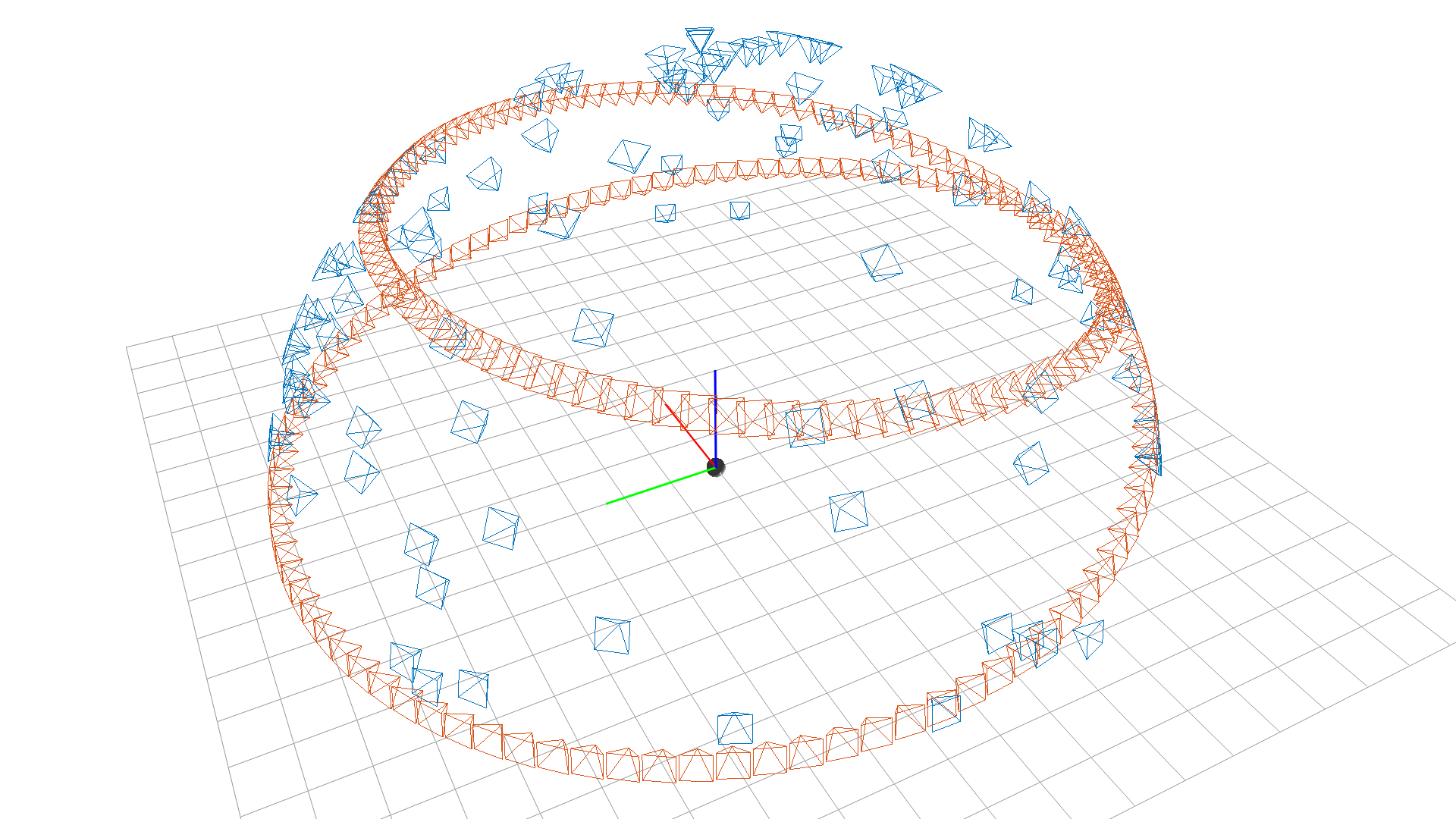

Camera viewpoints used in Blender dataset

Camera viewpoints used in the Blender dataset.

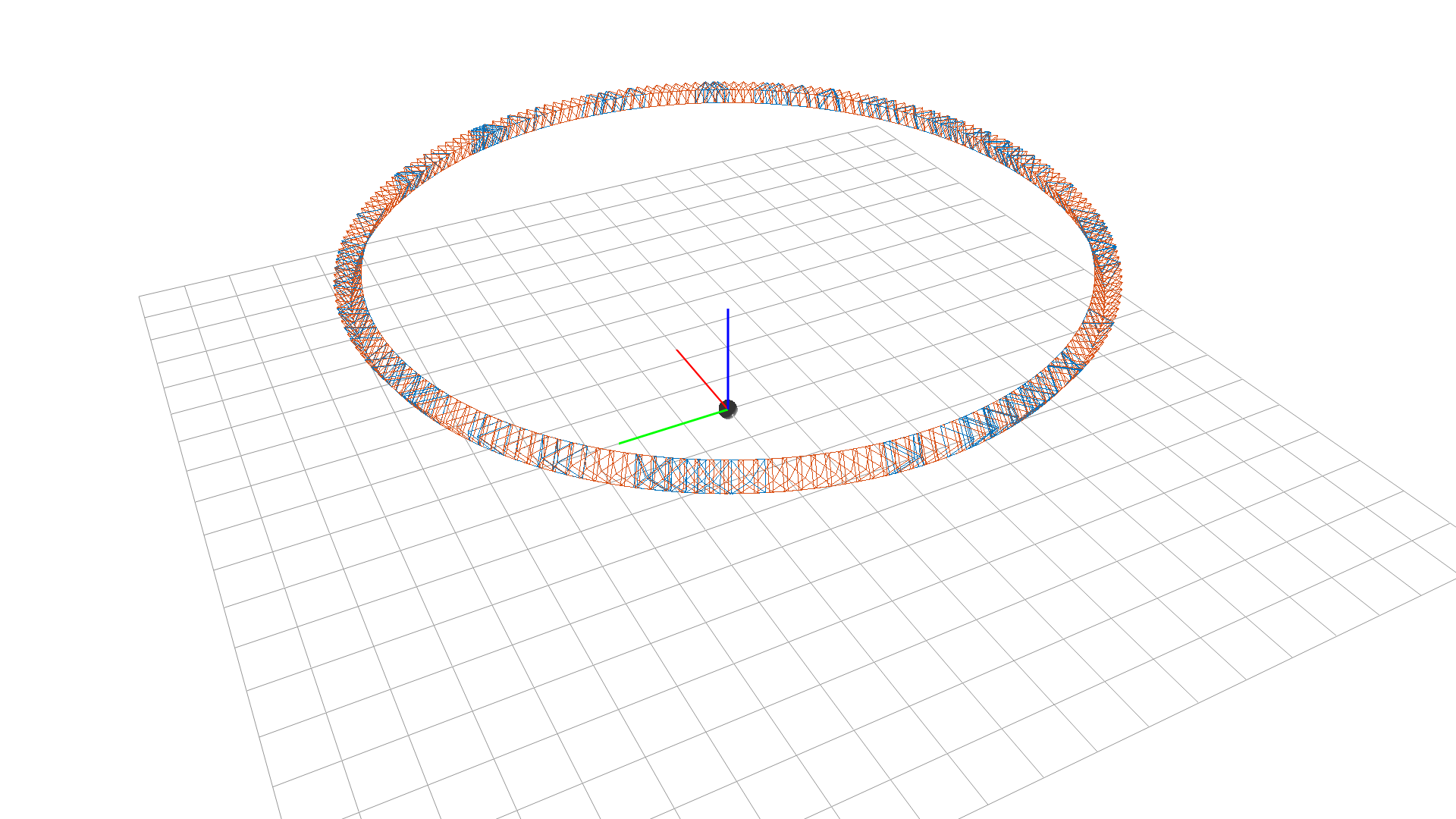

Camera viewpoints used in GuardSplat

Camera viewpoints used in GuardSplat.

GuardSplat cameras are generated using the official implementation’s default parameters : $r = 4.031128874, \theta \in [-180^\circ, 180^\circ], \phi = -30^\circ$ (spherical coordinates; $r$ radius, $\theta$ azimuth, $\phi$ elevation).

Neither strategy covers the viewpoint space comprehensively,

Quantitative Results

01 Bit accuracy on the dataset-provided test set and the MSVS set.

In all cases, bit accuracy on the MSVS set is much lower than that on the dataset-provided test set, demonstrating the effectiveness of MSVS in exposing failure cases that an adversary would prefer.

3D-GSW

Bit accuracy and rendering quality improvements of 3D-GSW on the Blender dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
3D-GSW	34.77	0.981	0.023	0.951	0.764
+ Random	32.59	0.971	0.032	0.975	0.832
+ Greedy (Ours)	32.37	0.970	0.033	0.975	0.852

Bit accuracy and rendering quality improvements of 3D-GSW on the Stanford-ORB dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
3D-GSW	35.75	0.976	0.027	0.996	0.828
+ Random	35.51	0.974	0.026	1.000	0.851
+ Greedy (Ours)	34.99	0.972	0.029	1.000	0.907

The proposed greedy subsampling strategy significantly improves bit accuracy on the MSVS set compared to random selection, demonstrating its effectiveness in enhancing protection where it matters.

GuardSplat

Bit accuracy and rendering quality improvements of GuardSplat on the Blender dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
GuardSplat	27.15	0.931	0.054	0.653	0.557
+ Random	26.91	0.927	0.058	0.706	0.599
+ Greedy (Ours)	26.92	0.927	0.058	0.705	0.601

Bit accuracy and rendering quality improvements of GuardSplat on the Stanford-ORB dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
GuardSplat	36.19	0.978	0.024	0.665	0.578
+ Random	35.31	0.976	0.027	0.711	0.647
+ Greedy (Ours)	35.34	0.976	0.027	0.711	0.650

GaussianMarker

Bit accuracy and rendering quality improvements of GaussianMarker on the Blender dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
GuardSplat	27.43	0.922	0.070	0.845	0.652
+ Random	27.19	0.917	0.077	0.884	0.686
+ Greedy (Ours)	27.20	0.918	0.077	0.882	0.691

Bit accuracy and rendering quality improvements of GaussianMarker on the Stanford-ORB dataset.
Method-Metric	PSNR^↑	SSIM^↑	LPIPS^↓	Bit Accuracy (Test)^↓	Bit Accuracy (MSVS)^↓
GaussianMarker	35.68	0.970	0.038	0.803	0.623
+ Random	35.02	0.965	0.043	0.848	0.668
+ Greedy (Ours)	35.11	0.966	0.042	0.844	0.669

02 Robustness under common image attacks.

The gains in bit accuracy from greedy subsampling persist under common image attacks.

3D-GSW

Bit accuracy under various image attacks of 3D-GSW on the Blender dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
3D-GSW	0.764	0.631	0.726	0.727	0.764
+ Random	0.832	0.678	0.789	0.794	0.832
+ Greedy (Ours)	0.852	0.685	0.806	0.816	0.852

Bit accuracy under various image attacks of 3D-GSW on the Stanford-ORB dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
3D-GSW	0.828	0.634	0.810	0.842	0.828
+ Random	0.851	0.665	0.831	0.861	0.851
+ Greedy (Ours)	0.907	0.688	0.888	0.914	0.907

GuardSplat

Bit accuracy under various image attacks of GuardSplat on the Blender dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
GuardSplat	0.557	0.574	0.562	0.558	0.557
+ Random	0.599	0.598	0.599	0.601	0.599
+ Greedy (Ours)	0.601	0.597	0.600	0.602	0.601

Bit accuracy under various image attacks of GuardSplat on the Stanford-ORB dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
GuardSplat	0.578	0.585	0.583	0.578	0.578
+ Random	0.647	0.616	0.636	0.648	0.647
+ Greedy (Ours)	0.650	0.616	0.639	0.651	0.650

GaussianMarker

Bit accuracy under various image attacks of GaussianMarker on the Blender dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
GaussianMarker	0.652	0.509	0.555	0.616	0.652
+ Random	0.686	0.511	0.573	0.644	0.686
+ Greedy (Ours)	0.691	0.511	0.575	0.649	0.691

Bit accuracy under various image attacks of GaussianMarker on the Stanford-ORB dataset.
Method-Attack	None	Noise ($\sigma = 0.1$)	JPEG ($50 \%$)	Scaling ($75 \%$)	Blur ($\sigma = 0.1$)
GaussianMarker	0.623	0.499	0.541	0.625	0.623
+ Random	0.668	0.501	0.568	0.663	0.668
+ Greedy (Ours)	0.669	0.501	0.567	0.666	0.669

03 Analysis on bit accuracy on the training and test sets.

Bit accuracy on the training set.

Bit accuracy on the test set.

GuardSplat attains very high training set bit accuracy but much lower test set accuracy, indicating its limited generalization in spatial watermark coverage. Therefore, adding a new training viewpoint mainly boosts accuracy at that viewpoint, with little benefit transferring to nearby views. As a result, most MSVS viewpoints yield similar marginal gains, so the choice of subsampling strategy matters little.

GaussianMarker exhibits substantially lower training-set bit accuracy than the other methods, indicating that it sometimes fails to embed a watermark even at training viewpoints. In such cases, adding a viewpoint does not reliably improve its bit accuracy, which violates the monotonic-improvement assumption of our kernel model that multiplies $b_S (x)$ by $k(d) \ge 1$. This mismatch reduces the advantage of the greedy algorithm.

By contrast, 3D-GSW trains reliably and generalizes better across neighboring views, so greedy subsampling yields large improvements on MSVS.

Qualitative Results

These are some example renderings with low bit accuracy from MSVS viewpoints. They are rendered by each model trained with the original training set (no extra MSVS views were used for training).

The rendering quality of low-texture objects is only moderate, which suggests optimization difficulty and may partly explain the low bit accuracy. However, even well-textured objects with high rendering quality can exhibit low bit accuracy. This suggests that existing methods, when trained on splits curated for novel view synthesis, generalize well in terms of image quality for unseen views but do not achieve equally broad watermark coverage.

01 3D-GSW

Blender

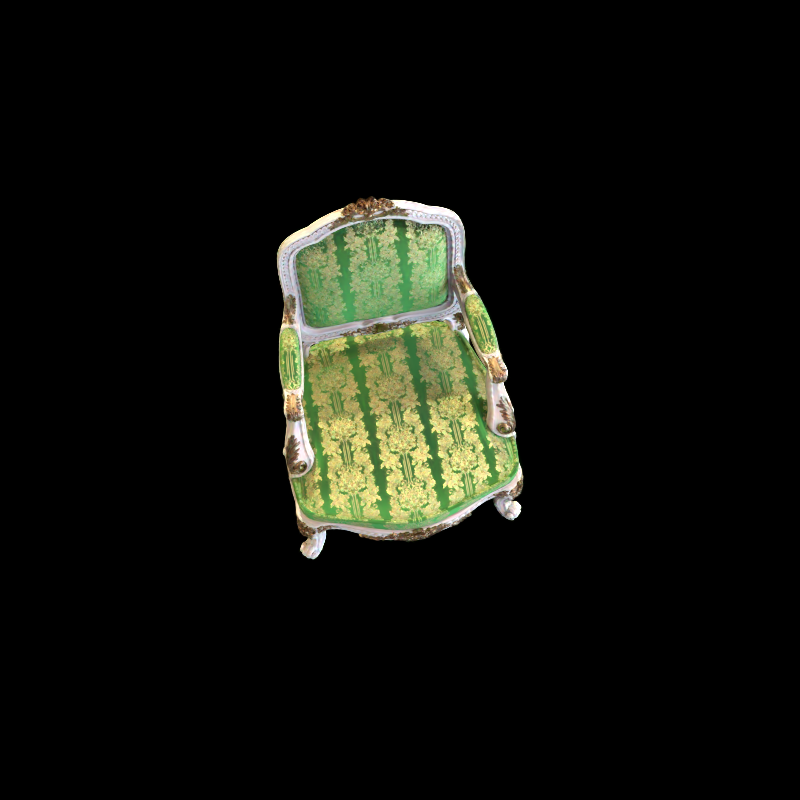

Chair - Bit Accuracy: 0.5
Chair - Bit Accuracy: 0.65625
Chair - Bit Accuracy: 0.65625

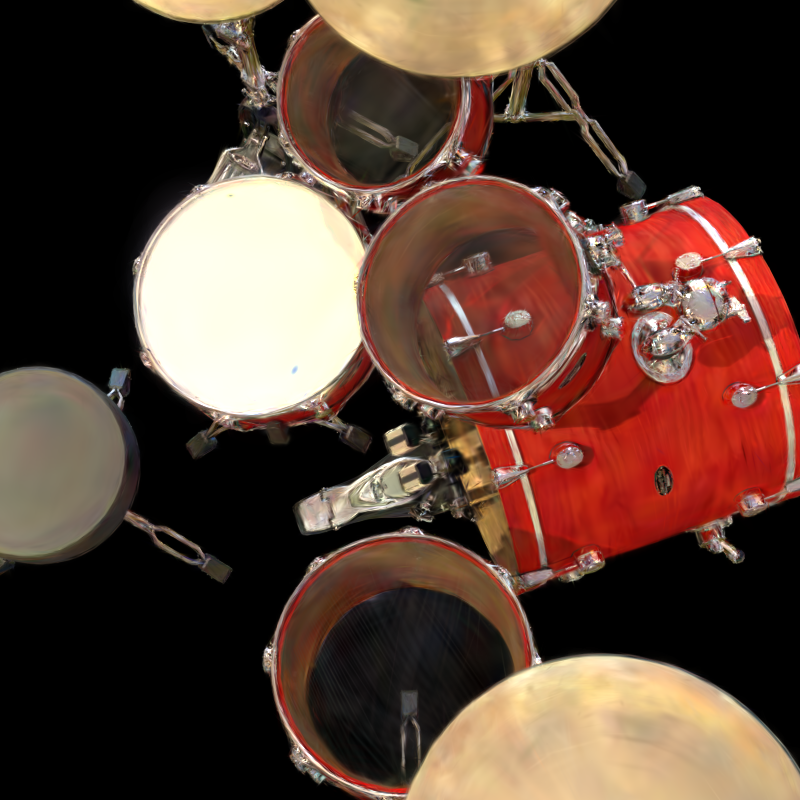

Drums - Bit Accuracy: 0.53125
Drums - Bit Accuracy: 0.5625
Drums - Bit Accuracy: 0.59375
Ficus - Bit Accuracy: 0.5625
Ficus - Bit Accuracy: 0.5625

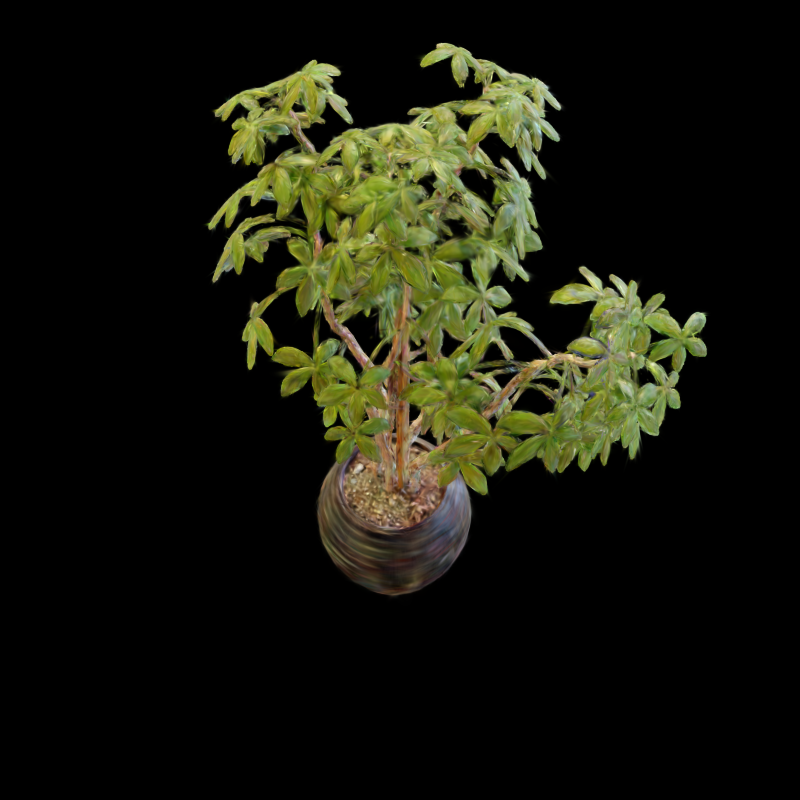

Ficus - Bit Accuracy: 0.59375

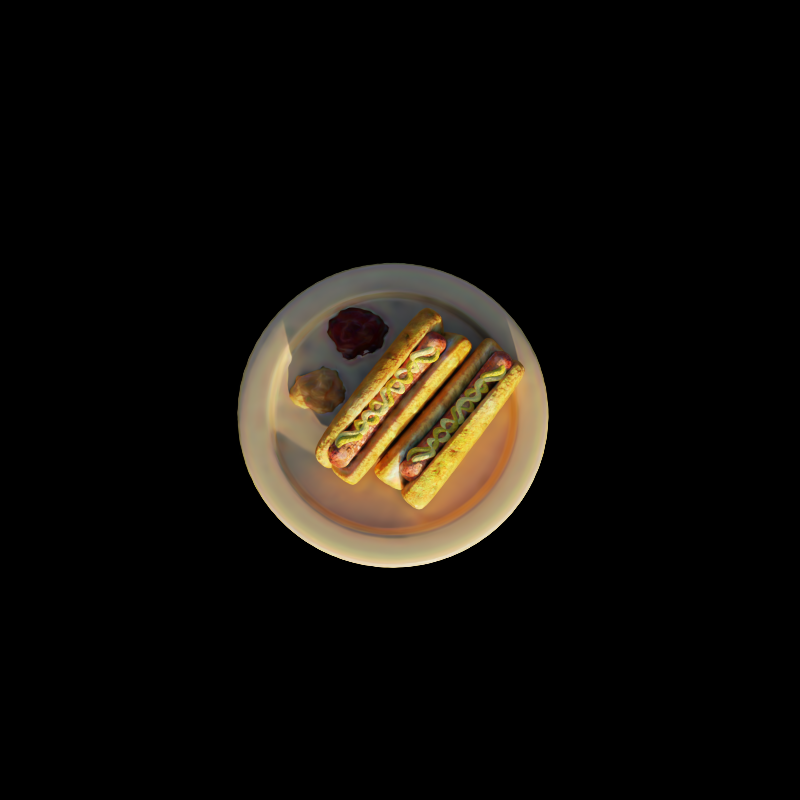

Hotdog - Bit Accuracy: 0.34375
Hotdog - Bit Accuracy: 0.34375
Hotdog - Bit Accuracy: 0.34375
Lego - Bit Accuracy: 0.375
Lego - Bit Accuracy: 0.40625
Lego - Bit Accuracy: 0.40625
Materials - Bit Accuracy: 0.4375
Materials - Bit Accuracy: 0.53125

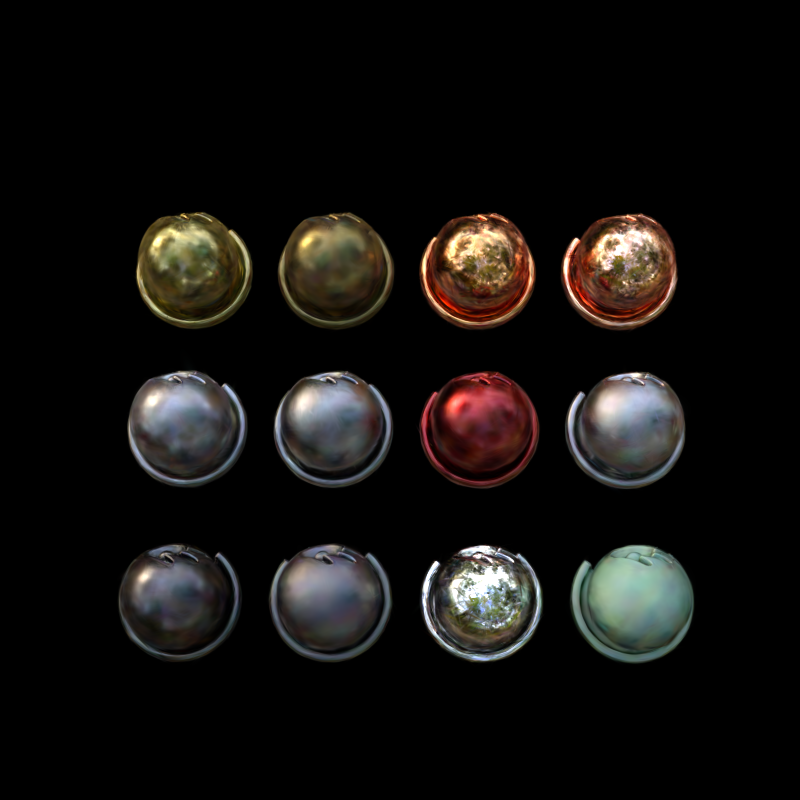

Materials - Bit Accuracy: 0.53125

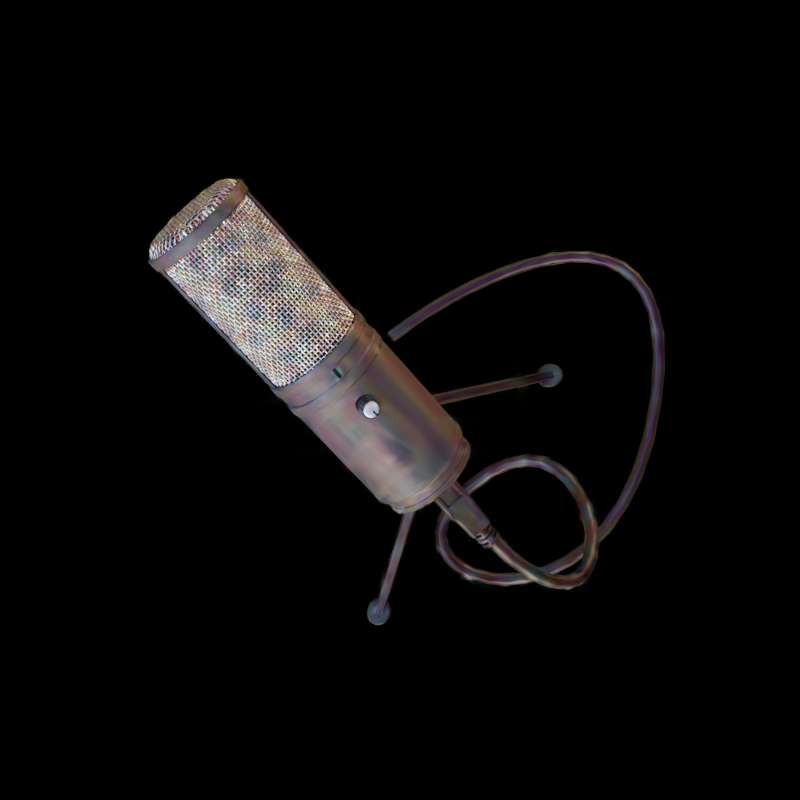

Mic - Bit Accuracy: 0.6875
Mic - Bit Accuracy: 0.71875
Mic - Bit Accuracy: 0.8125
Ship - Bit Accuracy: 0.46875

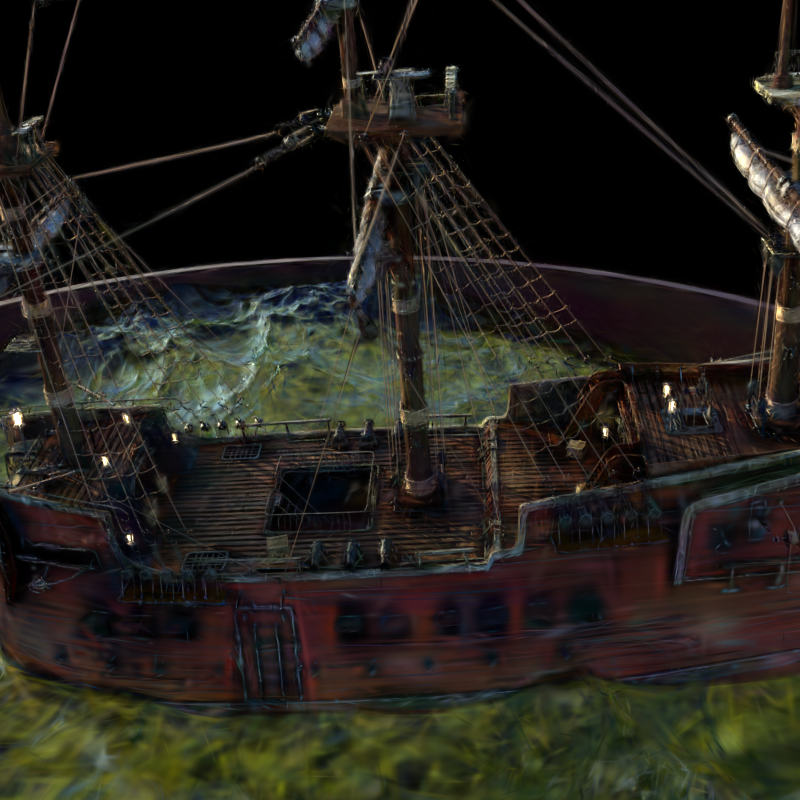

Ship - Bit Accuracy: 0.53125
Ship - Bit Accuracy: 0.5625

Stanford-ORB

Baking - Bit Accuracy: 0.5
Baking - Bit Accuracy: 0.5625
Ball - Bit Accuracy: 0.40625
Ball - Bit Accuracy: 0.46875
Chips - Bit Accuracy: 0.34375
Chips - Bit Accuracy: 0.5625
Cup - Bit Accuracy: 0.46875
Cup - Bit Accuracy: 0.5625

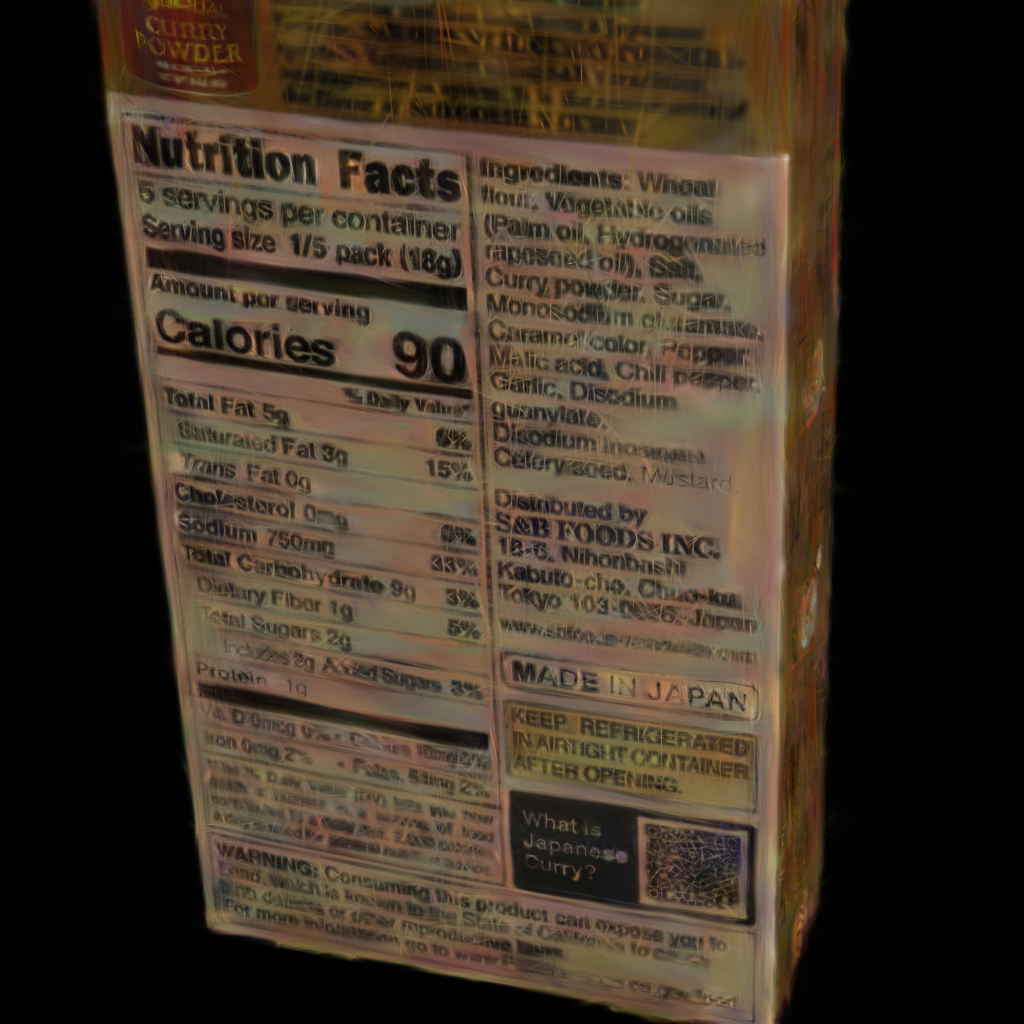

Curry - Bit Accuracy: 0.46875

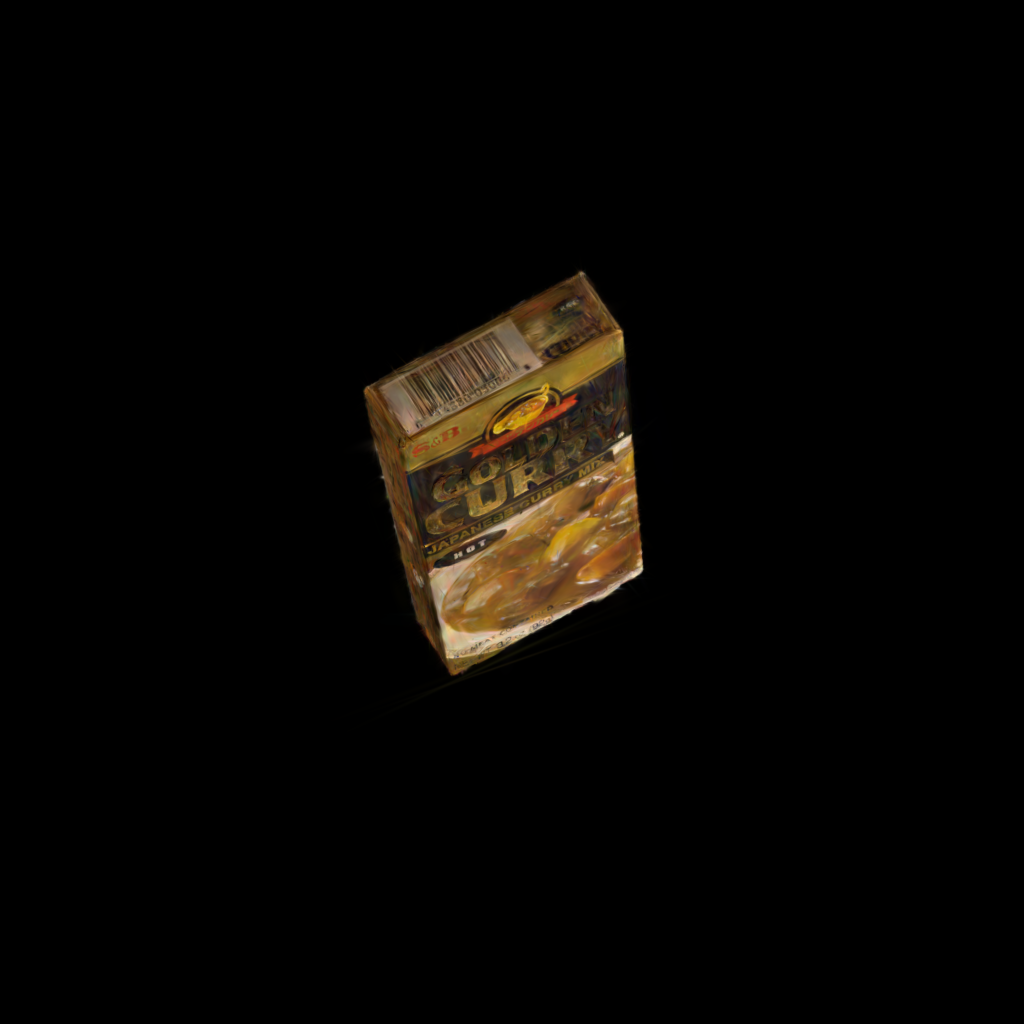

Curry - Bit Accuracy: 0.625
Gnome - Bit Accuracy: 0.53125
Gnome - Bit Accuracy: 0.5625

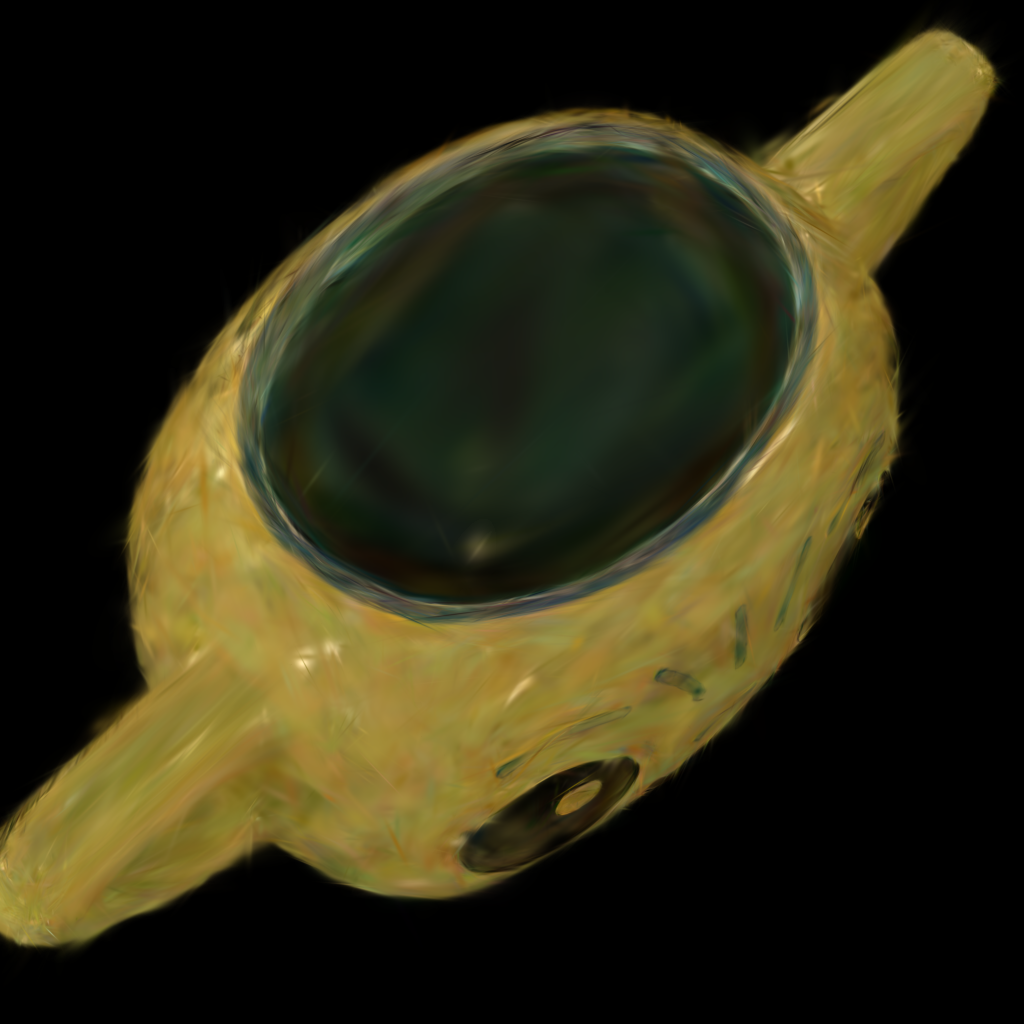

Grogu - Bit Accuracy: 0.59375
Grogu - Bit Accuracy: 0.625
Pepsi - Bit Accuracy: 0.5625
Pepsi - Bit Accuracy: 0.59375
Pitcher - Bit Accuracy: 0.53125
Pitcher - Bit Accuracy: 0.5625
Salt - Bit Accuracy: 0.4275
Salt - Bit Accuracy: 0.4275

02 GuardSplat

Blender

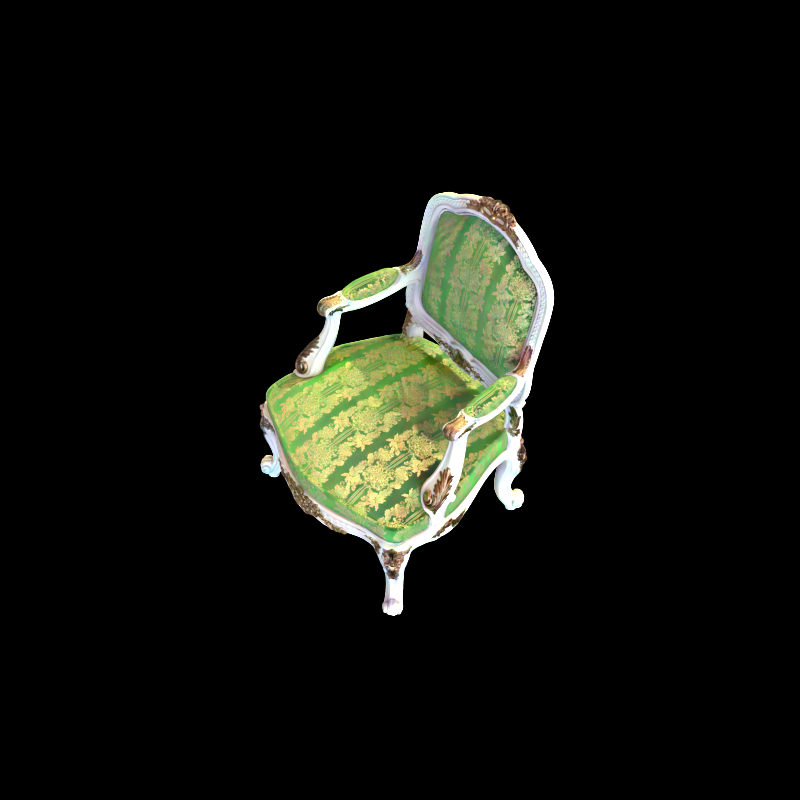

Chair - Bit Accuracy: 0.3125
Chair - Bit Accuracy: 0.34375
Chair - Bit Accuracy: 0.34375

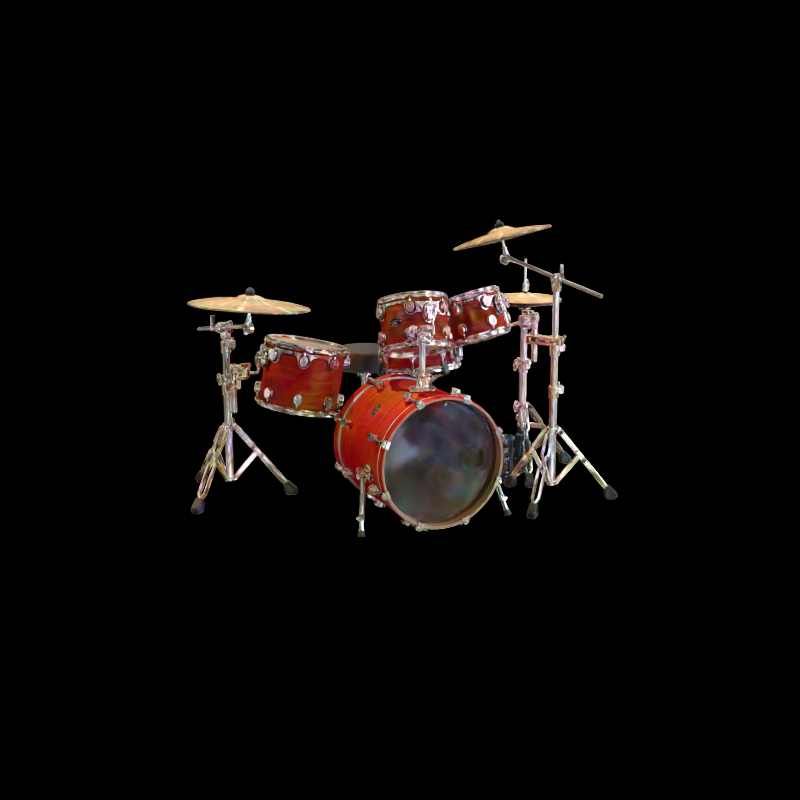

Drums - Bit Accuracy: 0.375
Drums - Bit Accuracy: 0.375
Drums - Bit Accuracy: 0.375
Ficus - Bit Accuracy: 0.375
Ficus - Bit Accuracy: 0.4375
Ficus - Bit Accuracy: 0.46875
Hotdog - Bit Accuracy: 0.40625

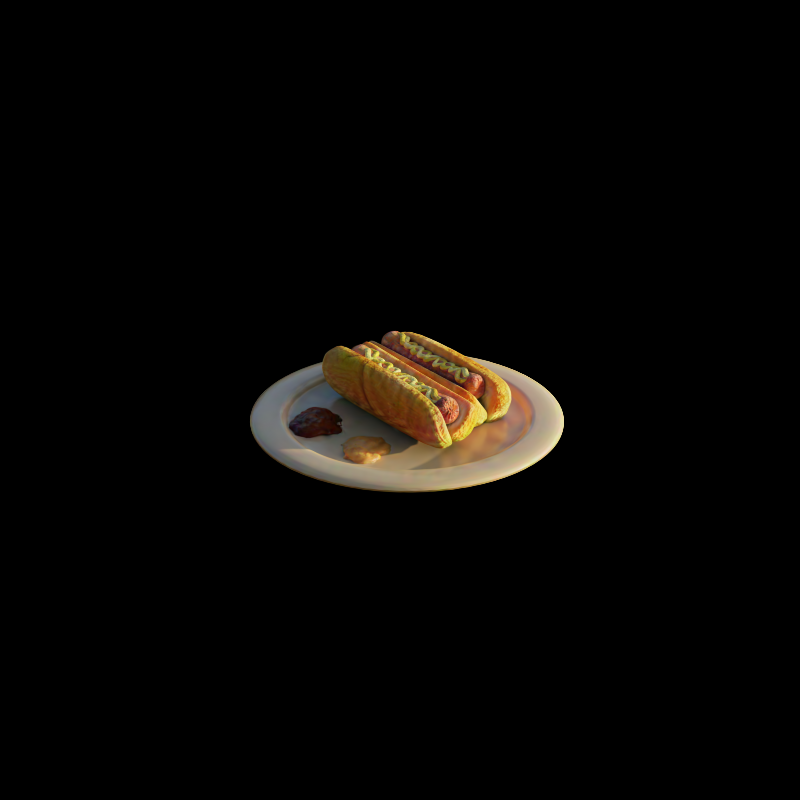

Hotdog - Bit Accuracy: 0.4375
Hotdog - Bit Accuracy: 0.46875

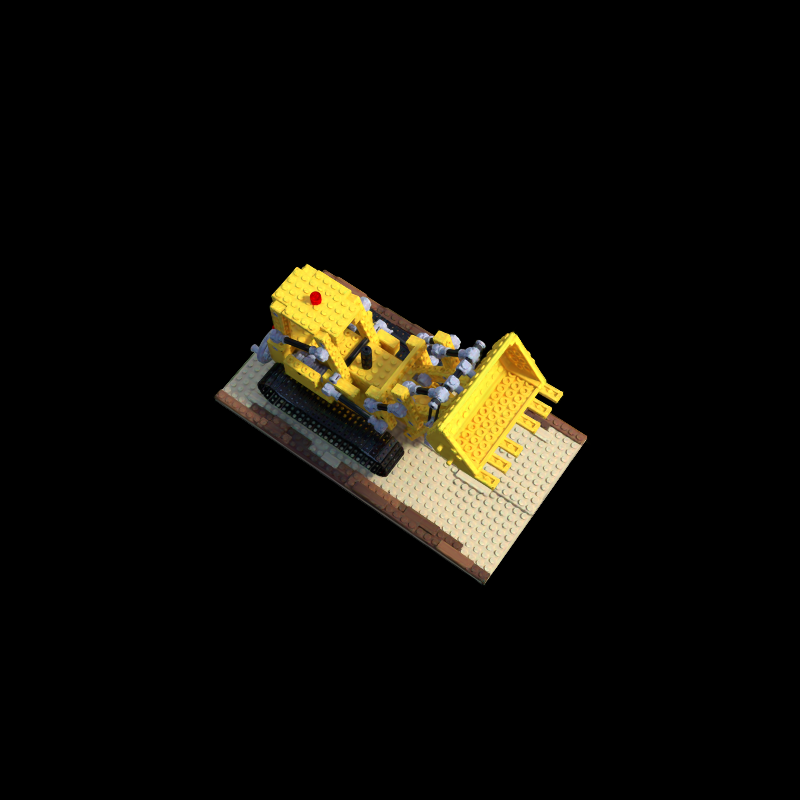

Lego - Bit Accuracy: 0.28125
Lego - Bit Accuracy: 0.34375
Lego - Bit Accuracy: 0.375
Materials - Bit Accuracy: 0.34375
Materials - Bit Accuracy: 0.34375
Materials - Bit Accuracy: 0.375

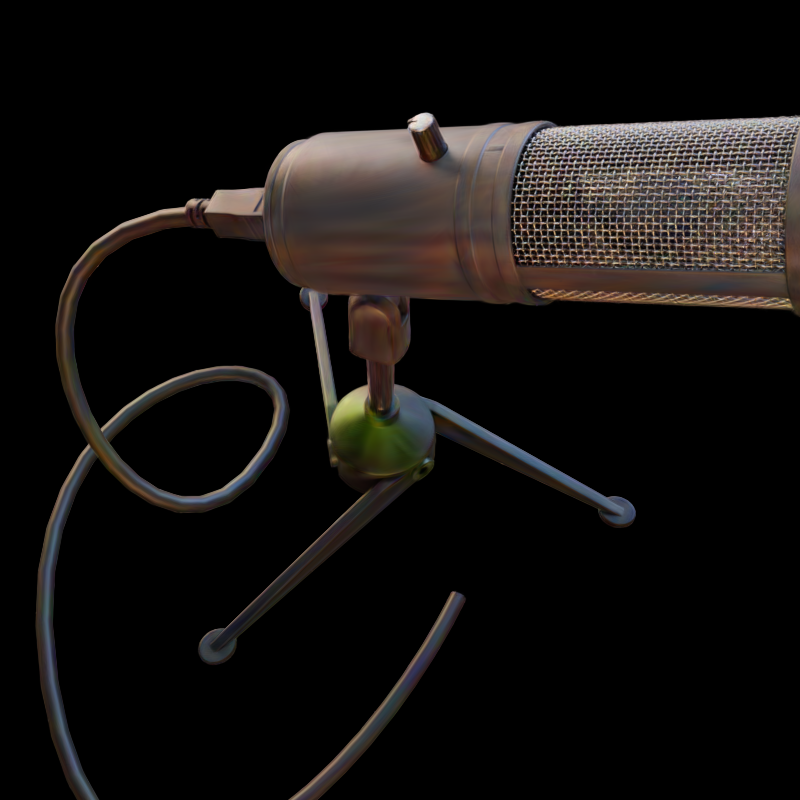

Mic - Bit Accuracy: 0.4375
Mic - Bit Accuracy: 0.4375
Mic - Bit Accuracy: 0.4375
Ship - Bit Accuracy: 0.4375
Ship - Bit Accuracy: 0.46875

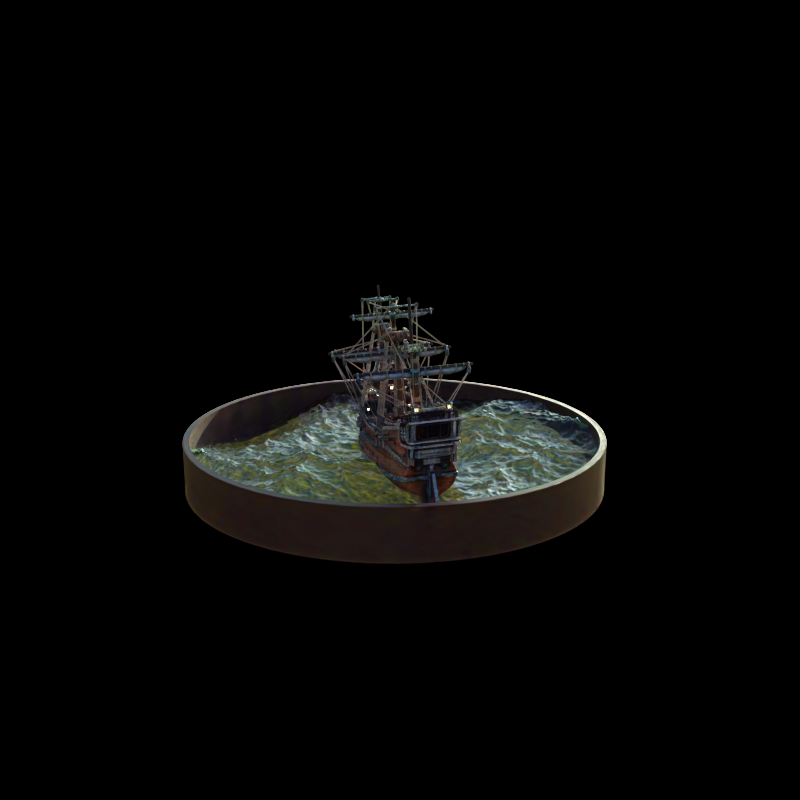

Ship - Bit Accuracy: 0.5

Stanford-ORB

Baking - Bit Accuracy: 0.4375
Baking - Bit Accuracy: 0.46875
Ball - Bit Accuracy: 0.34375
Ball - Bit Accuracy: 0.375

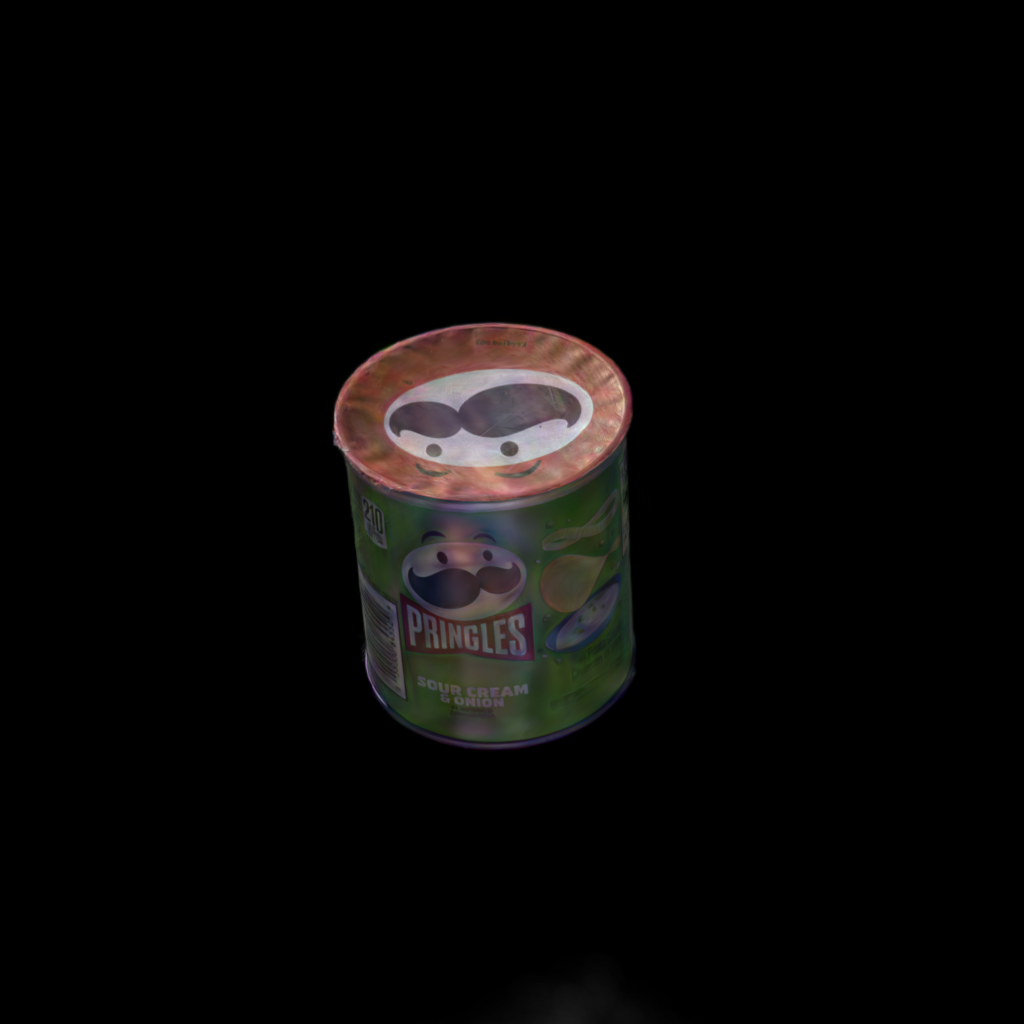

Chips - Bit Accuracy: 0.4375
Chips - Bit Accuracy: 0.4275

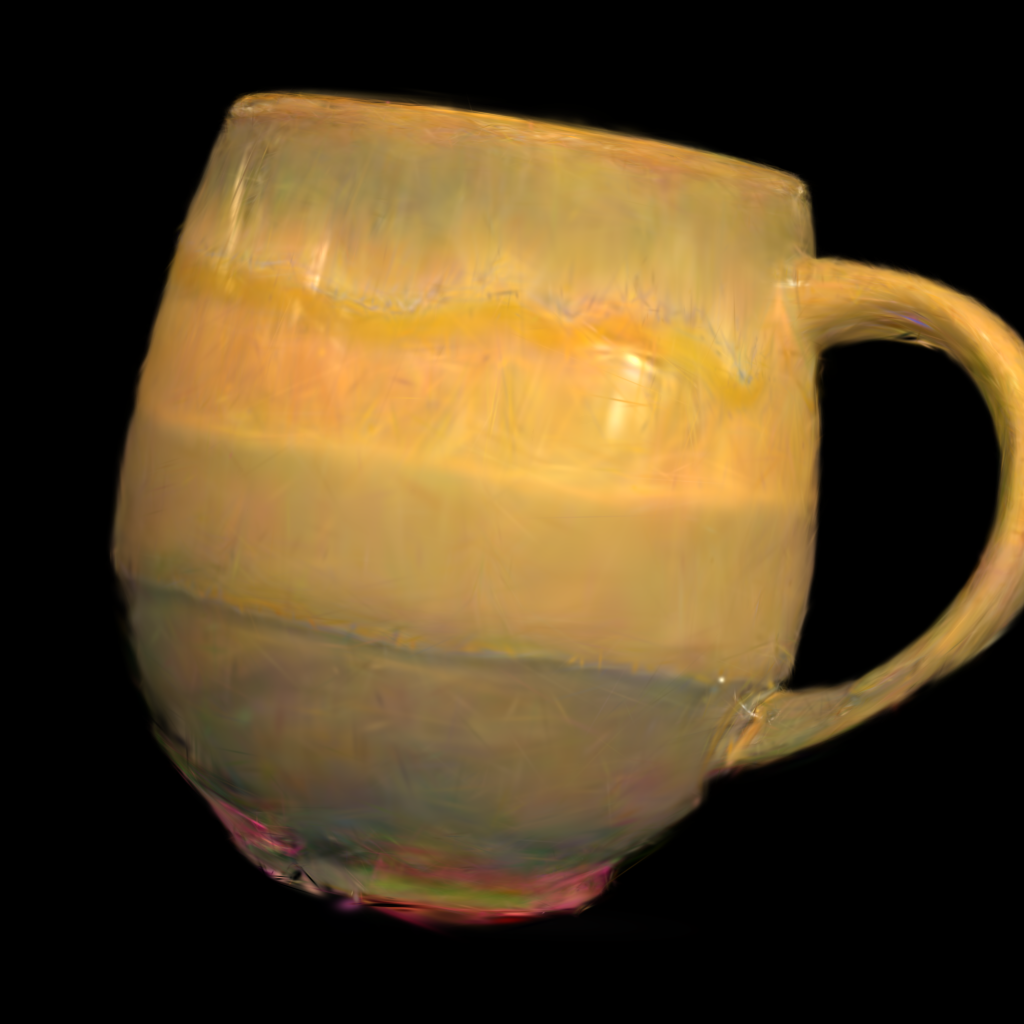

Cup - Bit Accuracy: 0.375

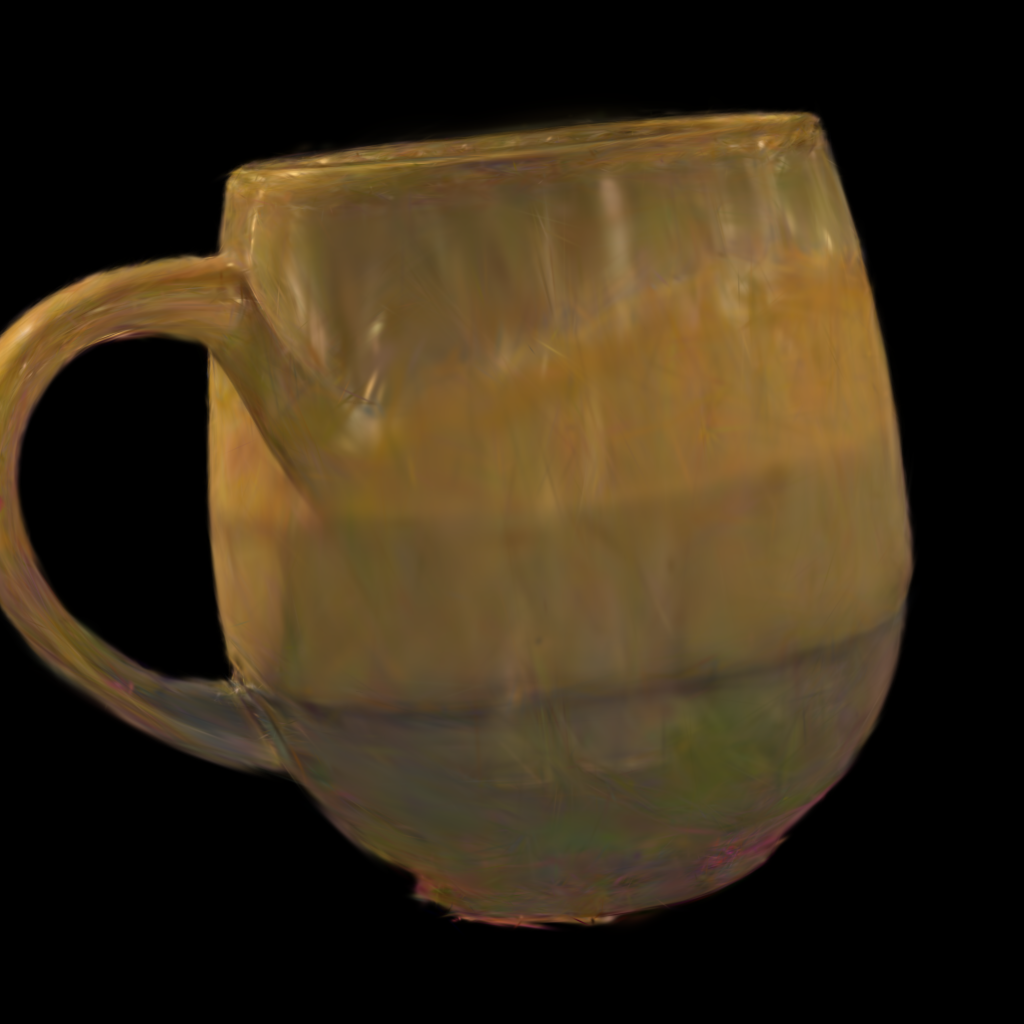

Cup - Bit Accuracy: 0.40625
Curry - Bit Accuracy: 0.4375
Curry - Bit Accuracy: 0.4375
Gnome - Bit Accuracy: 0.5
Gnome - Bit Accuracy: 0.53125
Grogu - Bit Accuracy: 0.40625
Grogu - Bit Accuracy: 0.4325
Pepsi - Bit Accuracy: 0.375
Pepsi - Bit Accuracy: 0.40625
Pitcher - Bit Accuracy: 0.40625
Pitcher - Bit Accuracy: 0.4375

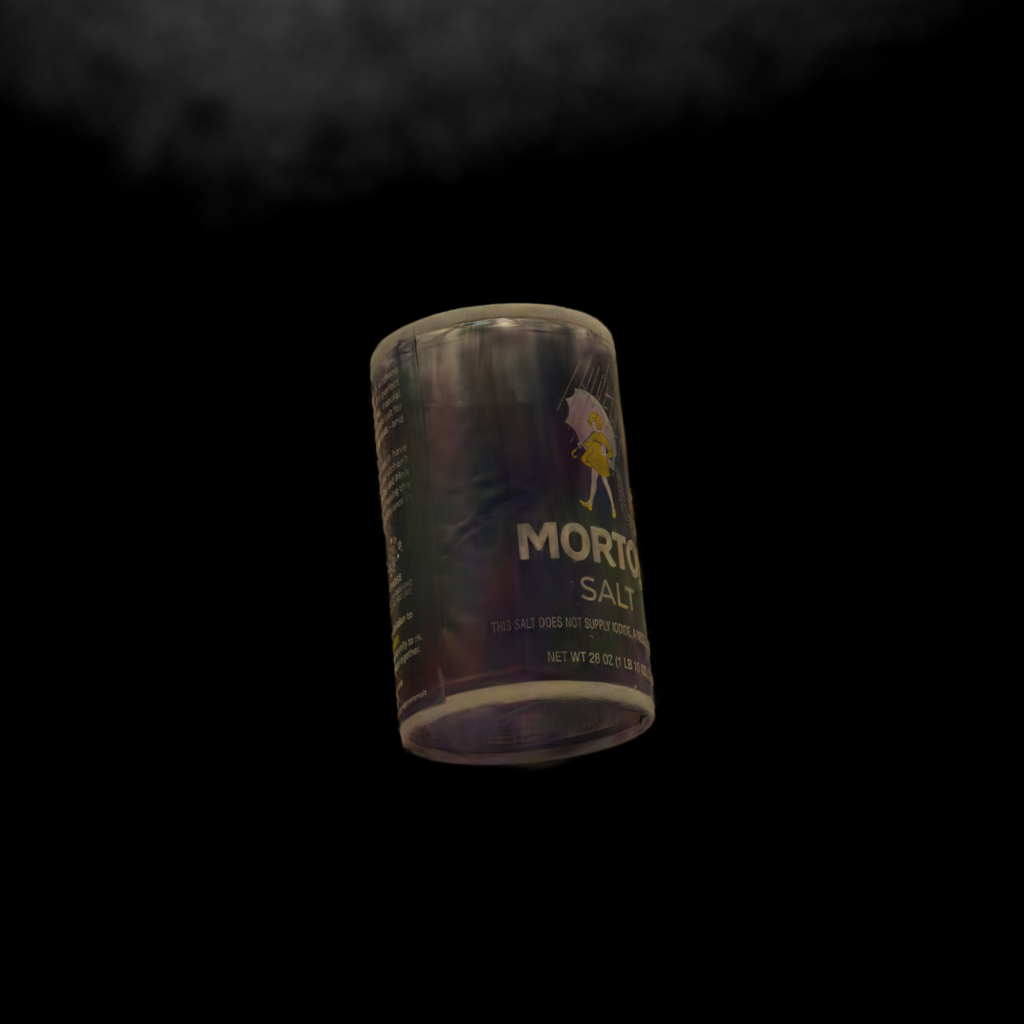

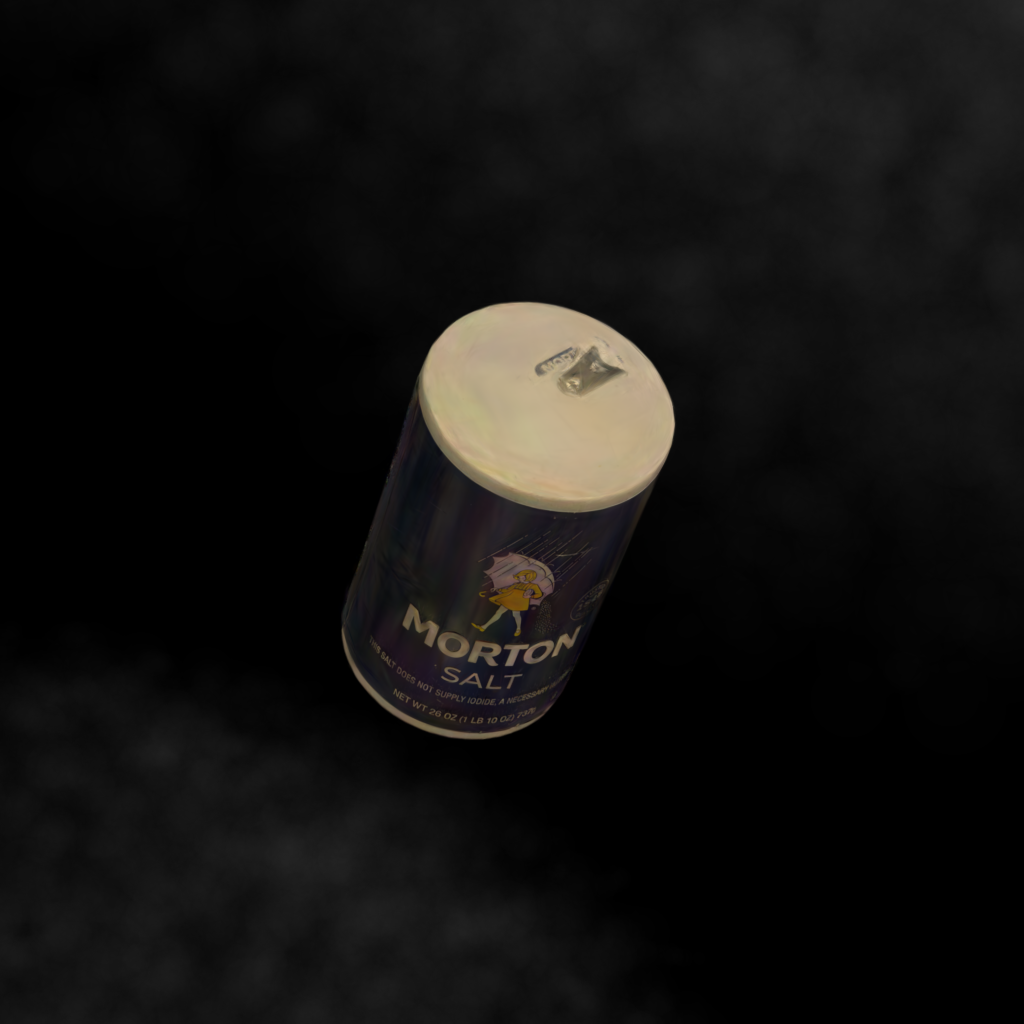

Salt - Bit Accuracy: 0.46875
Salt - Bit Accuracy: 0.46875

03 GaussianMarker

Blender

Chair - Bit Accuracy: 0.46875
Chair - Bit Accuracy: 0.5
Chair - Bit Accuracy: 0.5625
Drums - Bit Accuracy: 0.4375
Drums - Bit Accuracy: 0.4375

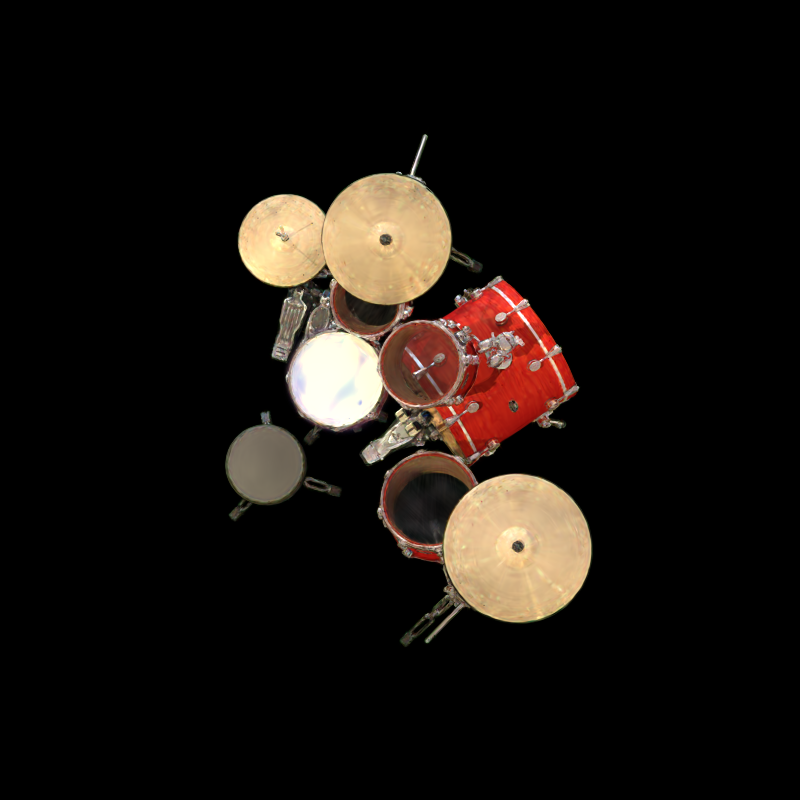

Drums - Bit Accuracy: 0.46875
Ficus - Bit Accuracy: 0.4375
Ficus - Bit Accuracy: 0.5
Ficus - Bit Accuracy: 0.53125
Hotdog - Bit Accuracy: 0.34375
Hotdog - Bit Accuracy: 0.375

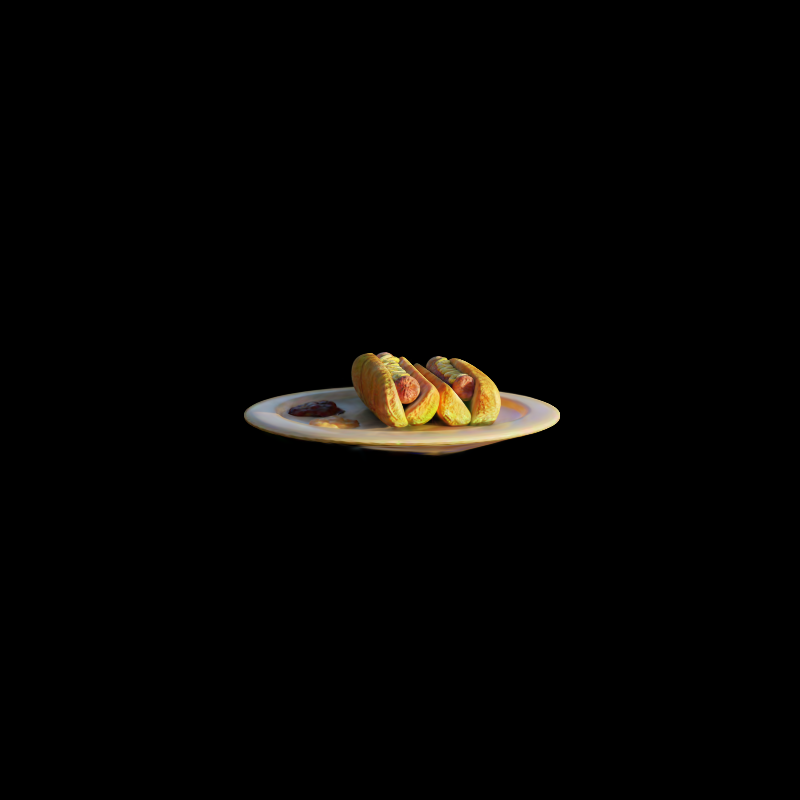

Hotdog - Bit Accuracy: 0.40625
Lego - Bit Accuracy: 0.3125
Lego - Bit Accuracy: 0.34375
Lego - Bit Accuracy: 0.375
Materials - Bit Accuracy: 0.40625
Materials - Bit Accuracy: 0.4375

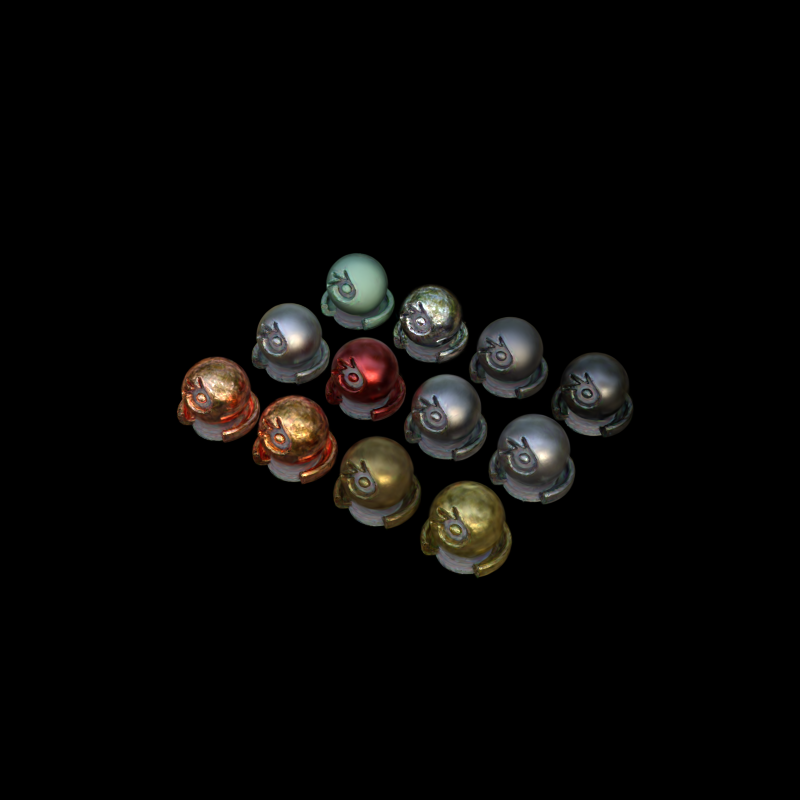

Materials - Bit Accuracy: 0.46875

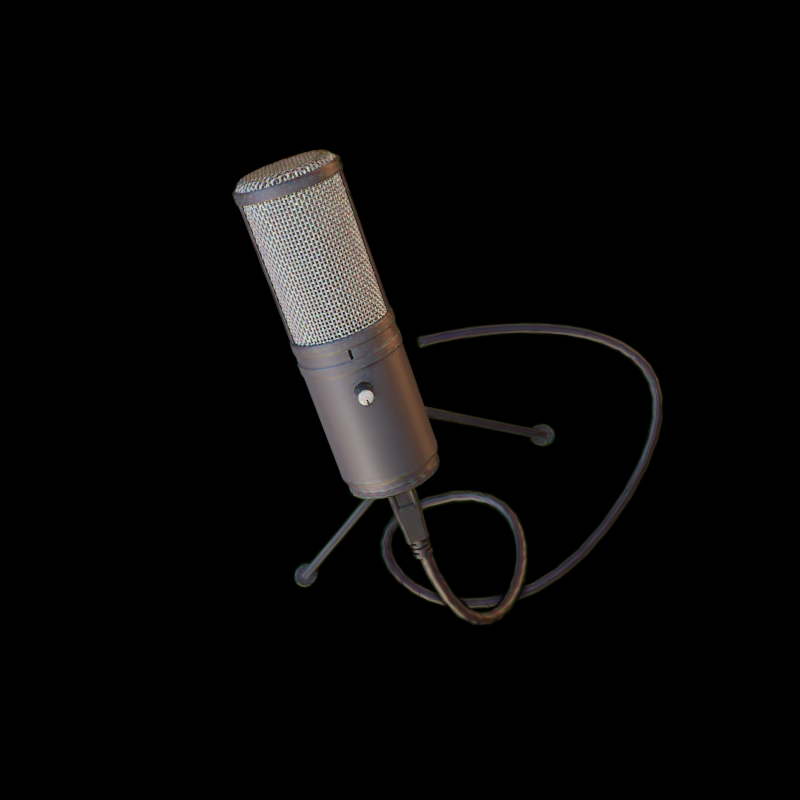

Mic - Bit Accuracy: 0.5
Mic - Bit Accuracy: 0.5625
Mic - Bit Accuracy: 0.5625

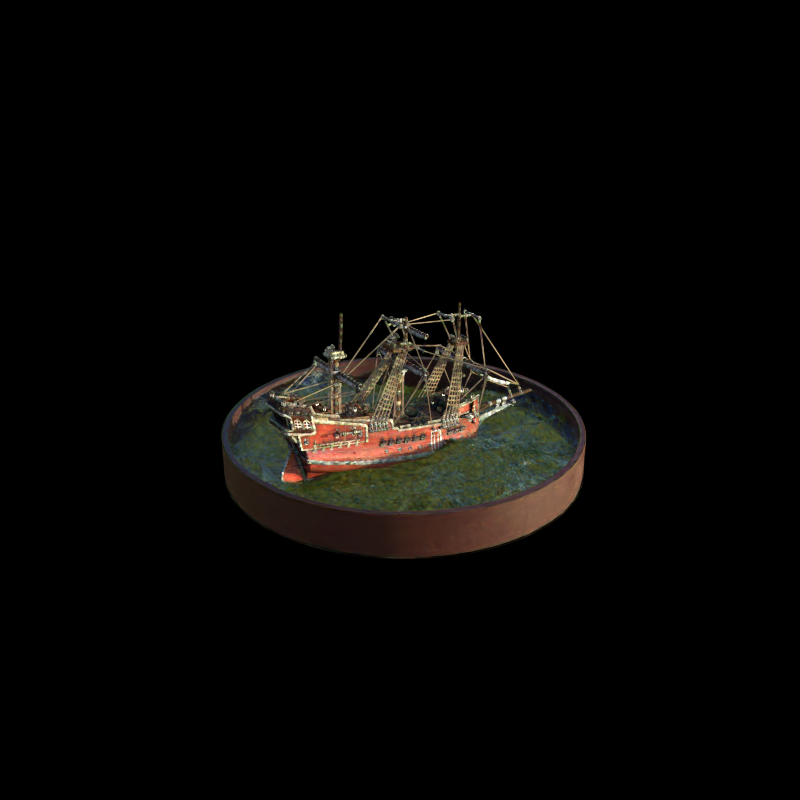

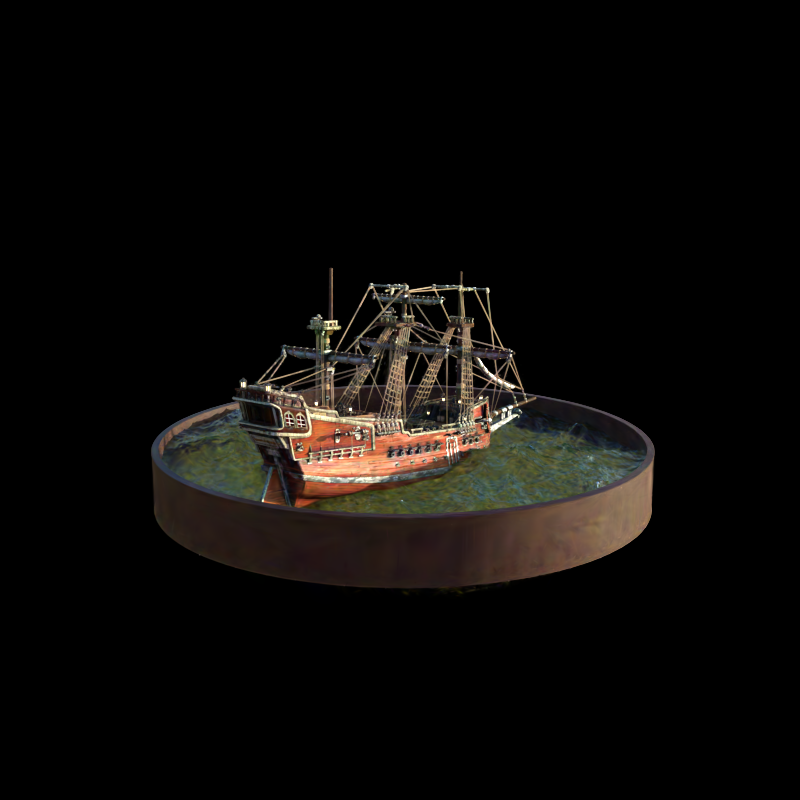

Ship - Bit Accuracy: 0.4375
Ship - Bit Accuracy: 0.4375
Ship - Bit Accuracy: 0.4375

Stanford-ORB

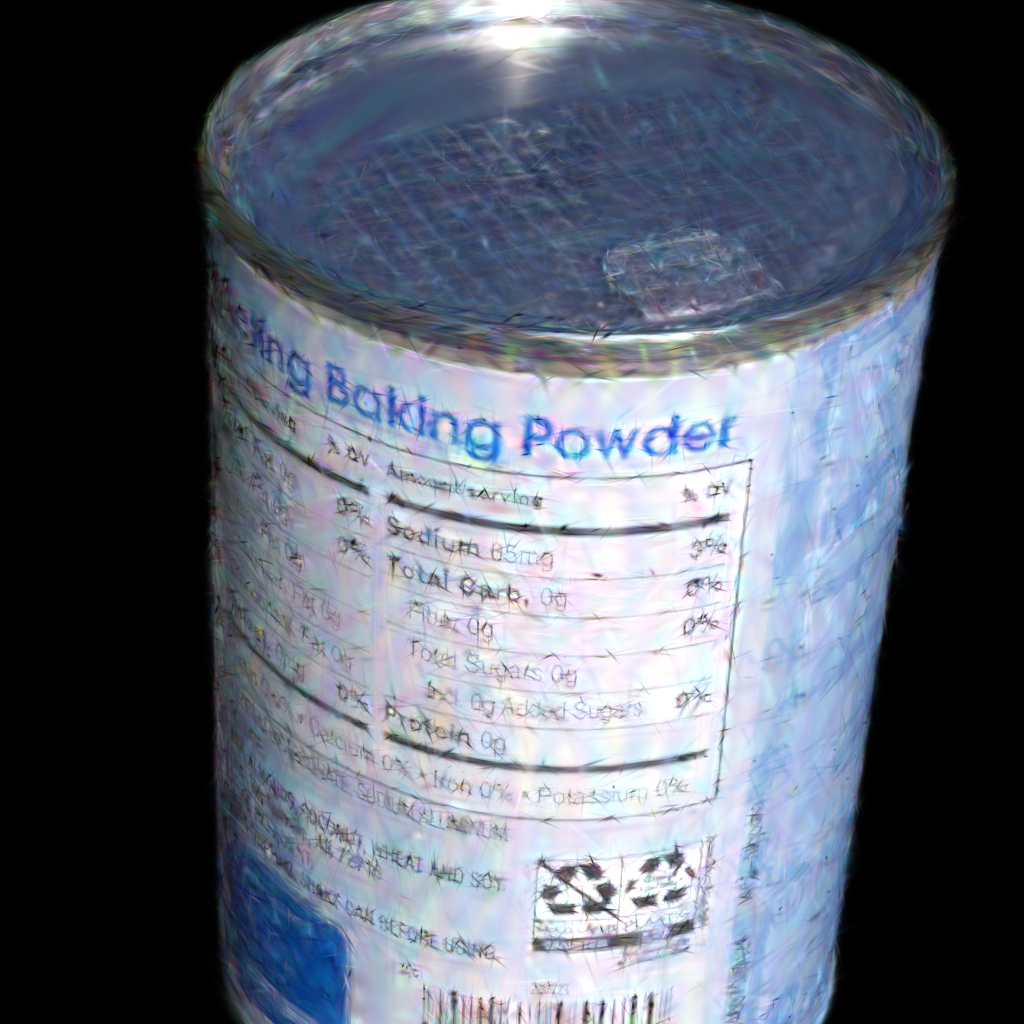

Baking - Bit Accuracy: 0.375
Baking - Bit Accuracy: 0.5625
Ball - Bit Accuracy: 0.4375

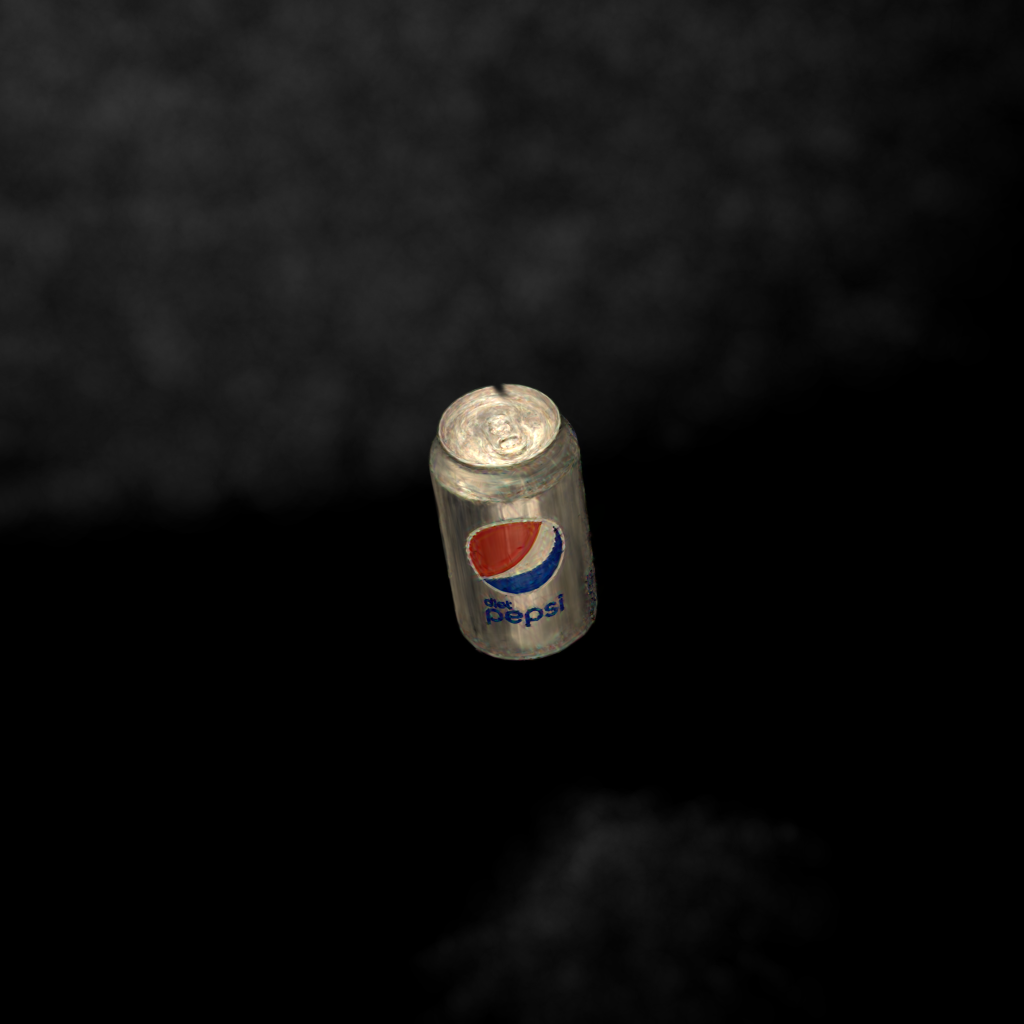

Ball - Bit Accuracy: 0.5
Chips - Bit Accuracy: 0.46875
Chips - Bit Accuracy: 0.59375

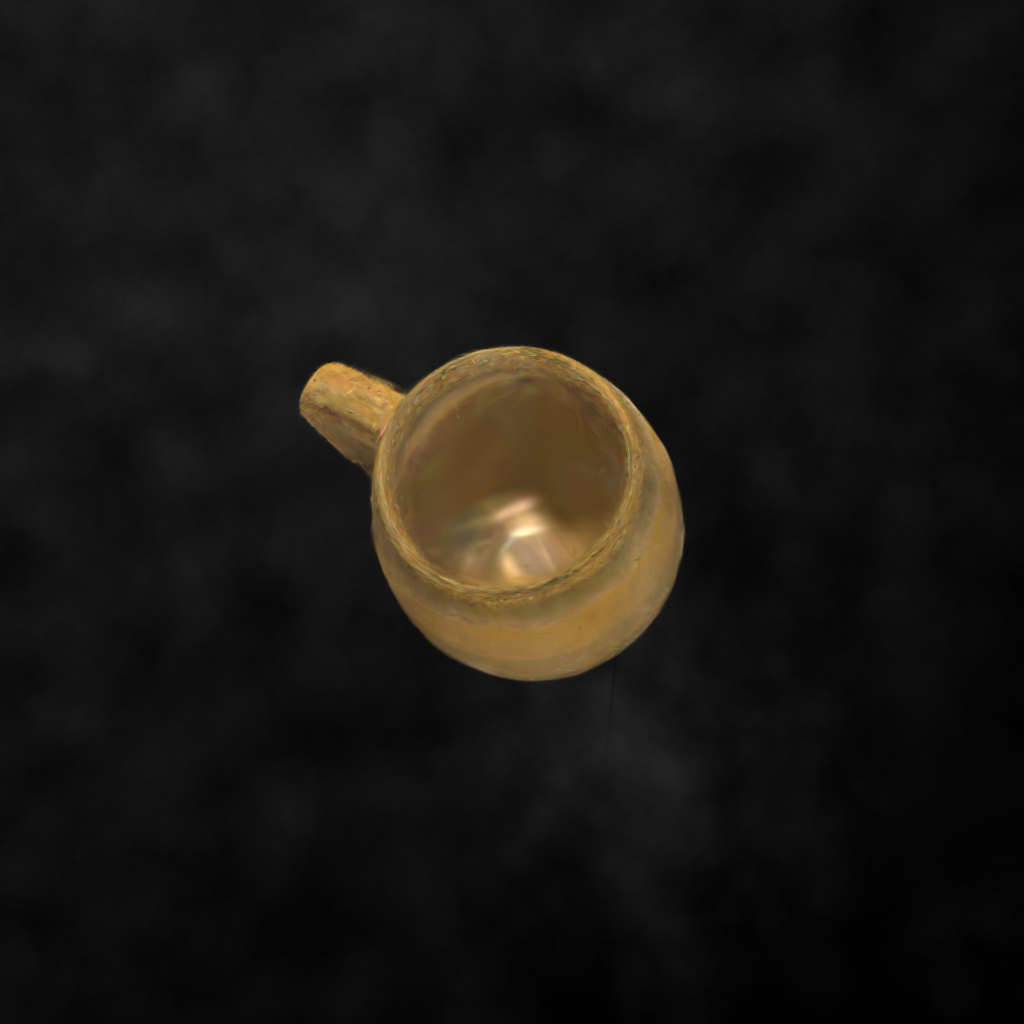

Cup - Bit Accuracy: 0.50625
Cup - Bit Accuracy: 0.4375

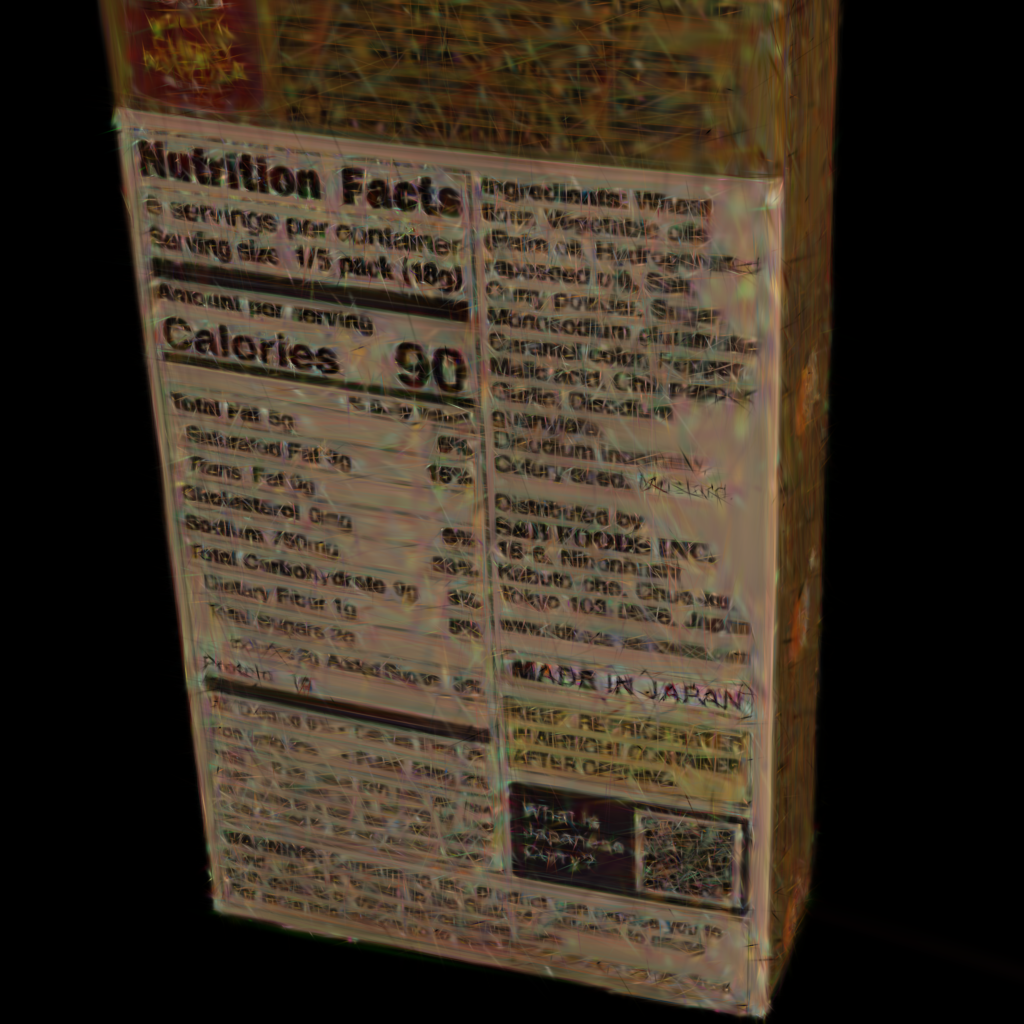

Curry - Bit Accuracy: 0.5
Curry - Bit Accuracy: 0.5
Gnome - Bit Accuracy: 0.4375
Gnome - Bit Accuracy: 0.46875
Grogu - Bit Accuracy: 0.46875
Grogu - Bit Accuracy: 0.5
Pepsi - Bit Accuracy: 0.4375
Pepsi - Bit Accuracy: 0.53125
Pitcher - Bit Accuracy: 0.4375
Pitcher - Bit Accuracy: 0.5
Salt - Bit Accuracy: 0.46875
Salt - Bit Accuracy: 0.5
